GY6 50cc-150cc Scooter Service Manual

Description

GY6 50cc-150cc Scooter Service Manual PDF

• Brand: GY6
• File Size: 62 Mb
• File Format: PDF
• Language: English
• Requirements: PDF Reader
• Compatible OS: Windows/Mac/Tablet/IOS /Android
• Instant Download
  No Shipping Cost
  No Need to Wait For A CD-ROM

This service manual covers the 50cc and 150cc GY6 Engine used in nearly all of the models we sell. Some images may differ slightly from the model you are working on but you will find this manual very useful for all models

The information contained in this service manual is based on the GY6 50cc-150cc CVT Engine used in nearly all the scooters we sell. Your actual model may vary somewhat from the information pictured in the service manual. Please read the manual that came with the model scooter you are attempting to repair for any specifications that may differ from this service manual.

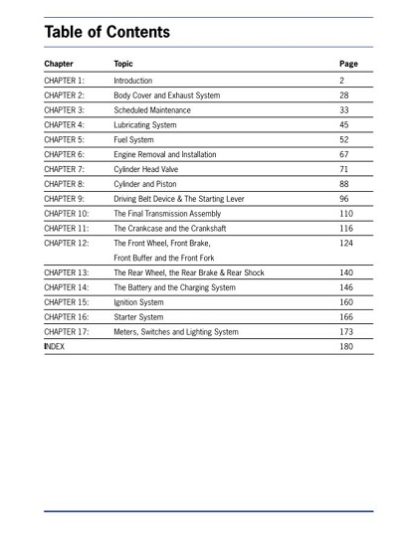

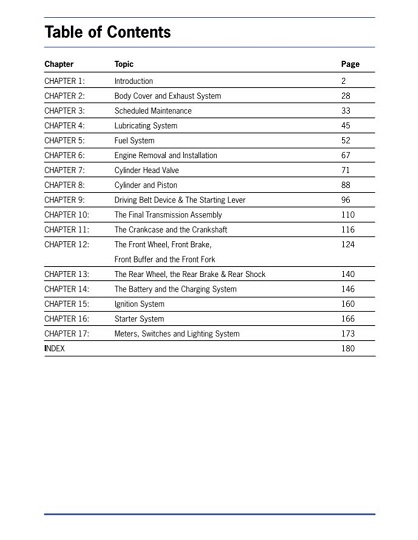

CONTENTS:
Introduction
Body cover and exhaust system
Scheduled maintenance
Lubricating system
Fuel system
Engine removal and installation
Cylinder head valve
Cylinder and piston
Driving belt device & the starting lever
The final transmission assembly
The crankcase and the crankshaft
The front wheel , front brake , front buffer and the front fork
The rear wheel , the rear brake & rear shock
The battery and the charging system
Ignition system
Starter system
Meters , switches and lighting system
Index
