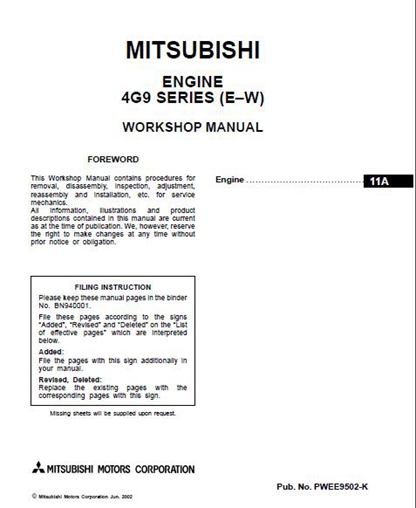

Mitsubishi 4G9 (4G92, 4G93, 4G94) Series Engine Workshop Manual
- Covers: 4G9 engine (4G92, 4G93, 4G94)
- File Size: 8.3 Mb
- File Format: PDF
- Language: English
- Requirements: PDF Reader
- Compatible OS: Windows/Mac/Tablet/IOS /Android
This Workshop Manual contains procedures for removal, disassembly, inspection, adjustment,reassembly and installation, etc. for service mechanics.Using this repair manual is a cheap way to get your Mitsubishi working properly. All pages are printable, just run to your needs and then take them with you into the garage or workshop.
General Mitsubishi Workshop Manual of 4G9 engine (4G92, 4G93, 4G94), that are mounted on Lancer, Carisma, Pajero, Galant, Space Star, Space Runner either with MIVEC, GDI, SOHC or DOHC.
Content:
- General Informtion
- Specifications [ Service Specifications ~ Rework Dimensions ~ Torque Specifications ~ New Tightening Method by Use of Bolts to be Tightened in Plastic Area ~ Sealant ~ Form in Place Gasket]
- Special Tools
- Alternator and Ignition System
- Timing Belt
- Fuel and Emission Control System [ Throttle Body and EGR System (GDI) ]
- Intake and Exhaust Manifold [ Intake Manifold (GDI) ~ Exhaust Manifold (GDI) ~ Injector and Fuel Pump
- Assembly (GDI) ~ Intake and Exhaust Manifold (4G94-GDI for Pajero io)]
- Water Pump & Water Hose
- Rocker Arms and Camshafts [ Rocker Cover and Camshafts (MIVEC) ~ Rocker Arms and Rocker Shaft Caps (MIVEC)]
- Cylinder Head and Valves
- Front Case and Oil Pump
- Piston and Connecting Rod
- Crankshaft, Cylinder Block, Flywheel and Drive Plate
