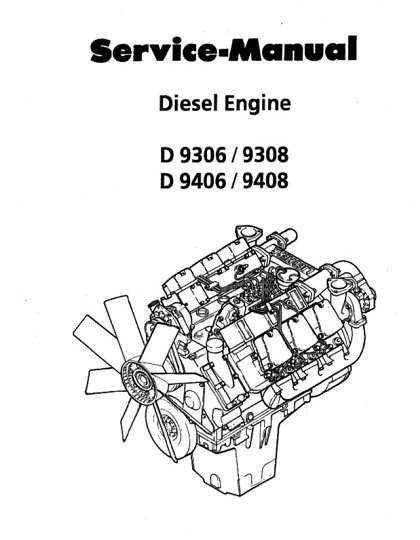

Liebherr D9306 D9308 D9406 D9408 Diesel Engine Service Manual

Description

Download Complete Service & Repair Manual for Liebherr D9306 D9308 D9406 D9408 Diesel Engine.

Liebherr D9306 D9308 D9406 D9408 Service Manual has easy-to-read text sections with top quality diagrams and instructions, they are specifically written for the do-it-yourselfer as well as the experienced mechanic, with very easy to follow step-by-step instructions & pictures on all areas of repair, it makes repair job easy to do. Using this repair manual is an inexpensive way to keep your vehicle working properly.

SITE :25 MB
FORMAT: PDF
LANGUAGE: English
Number of pages: 176 pages
Win95/98/ME/XP/vista/7/10/Linux/MAC /IPAD/IOS
Requirements Adobe PDF Reader

INDEX:

1. Engine illustrations
2. Technical description
3. Engine description, engine data tag, cylinder description, direction of rotation and engine identification number
4. Engine data, adjustment values, operating pressures, operating temperatures and fluid quantities
5. Torque specifications
6. Valve adjustment
7. Cylinder head gaskets
8. Cylinder head
9. Cylinder liner
10. Piston and connecting rod
11. Check piston clearance
12. Crankshaft and bearing
13. Camshaft and valve drive
14. Lube oil circuit
15. Oil pans
16. Lube oil pump
17. Lube oil fitter and oil cooler
18. Coolant circuit
19. Water filter
20. Coolant pump
21. Fan drive
22. Fuel system
23. Fuel pump
24. Fuel filter
25. Injection pump
26. Injection pump drive, adjust begin of delivery
27. Fuel injector
28. Engine exhaust
29. Fan and flywheel side crankshaft seal
30. Hydraulic pump auxiliary drive
31. Air compressor
32. Starter
33. Air conditioner compressor and alternator
34. Starting aid
35. Turbo charger
36. Gear drive – flywheel side
37. Gear drive – fan side
38. Maintenance and inspections
39. Service fluids
40. Troubleshooting
41. Special tools
